Advantages
╸ 120/240Volt single phase 50Hz or 60Hz.
╸ 220/380 Volt three phases 50Hz.
╸ Easy to take up heavy loading like motor, welding machine, big power air condition like 5HP, air compressor and light tower etc.
╸ Water-cooled engine.
╸ Water-cooled rare earth, PMG alternator.
╸ Water-cooled inverter control system.
╸ Separte ECU control system.
╸ Silent & Compact design.
╸ Terminal for ATS and 2 wires system options.
╸ 5 in LCM monitor.
Parameters

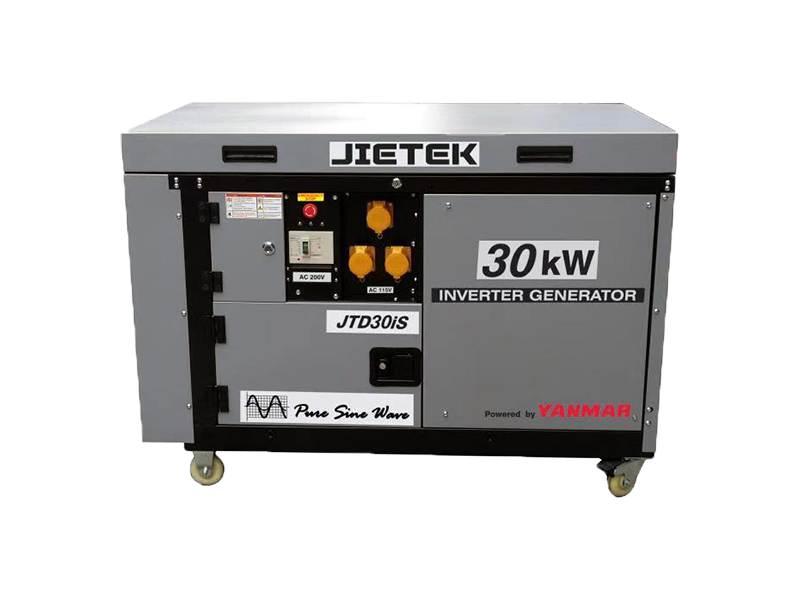

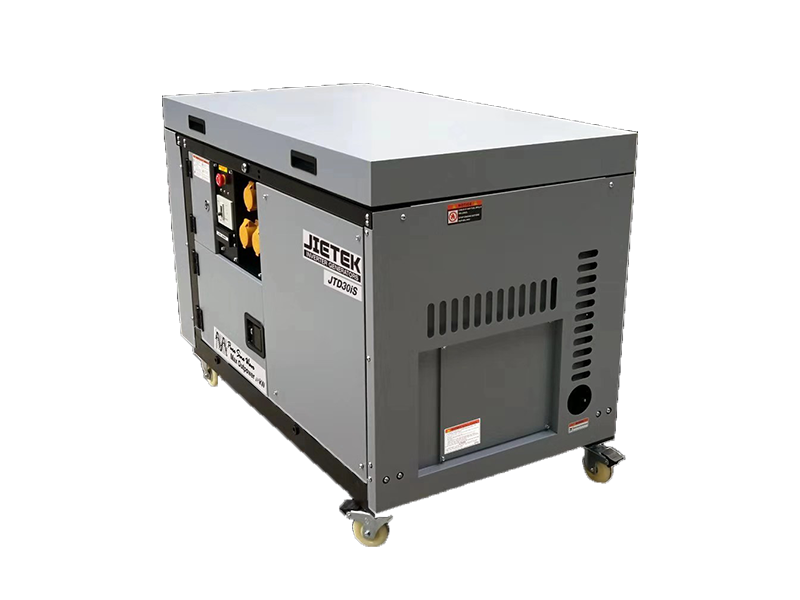

| JTD10iS | JTD14iS | JTD20iS | JTS30iS | ||
| Generator | Voltage (V) | 110 / 220 / 240 | 110 / 220 / 240 / 380 | ||
| Frequency (Hz) | 50 / 60 | ||||
| Rated Power (kw) | 10 | 12 | 18 | 24 | |
| Max Power (kw) | 11 | 14 | 20 | 30 | |
| Power Factor | 0.95 | ||||
| Power Outlets | 16A & 32A & 50A | ||||
| Phases | Single | Single / Three | |||
| Continuously Running Hours | 17 | 19 | 17 | 14 | |
| Fuel Tank Capacity (L) | 45 | 60 | 80 | 80 | |
| Type | Silent | ||||
| Engine | Model | 3TNV74F | 3TNV76 | 3TNV88F | 4TNV88 |
| Type | Vertical, Water Cooled Engine, 4 Stroke | ||||
| Engine Speed (rpm) | 2200 -- 3200 | ||||
| Oil Capacity (ml) | 1.3 | 1.6 | 1.642 | 2.19 | |
| Fuel Type | Diesel | ||||
| Fuel Consumption (g/kw.h) @75%load | 291 | 291 | 281 | 261 | |
| Alternator | Type | Vector Water Cooled PMG Alternator | |||
| Features | Power Output Wave | True pure sine wave with THD (total harmonic distortion) <2.5% | |||
| Soft Start | ✔ | ||||
| Noise Level (dBA / 7m) | 65---75 | ||||
| Start Control | 12v Electric Start | ||||
| Voltage Regulator | Inverter Control | ||||
| 5" LCM Display | Voltage / Frequency | ||||
| Power Rate | |||||
| Working Hours | |||||
| Inverter System Information | |||||
| Battery Status | |||||
| Load Status | |||||
| Short Circuit Protection | |||||
| Overload Alarm | |||||
| Fuel Indicator | |||||
| Radiator Tempreture | |||||
| Alternator Tempreture | |||||
| Inverter Tempreture | |||||
| Enviroment Tempreture | |||||
| Oil Tempreture | |||||
| Oil Pressure Alert | |||||
| Options | ATS | ✔ | |||
| 2 Wires System | ✔ | ||||
| Net/Gross Weight (kg) | 345 / 365 | 345 / 365 | 420 / 445 | 460 / 485 | |
